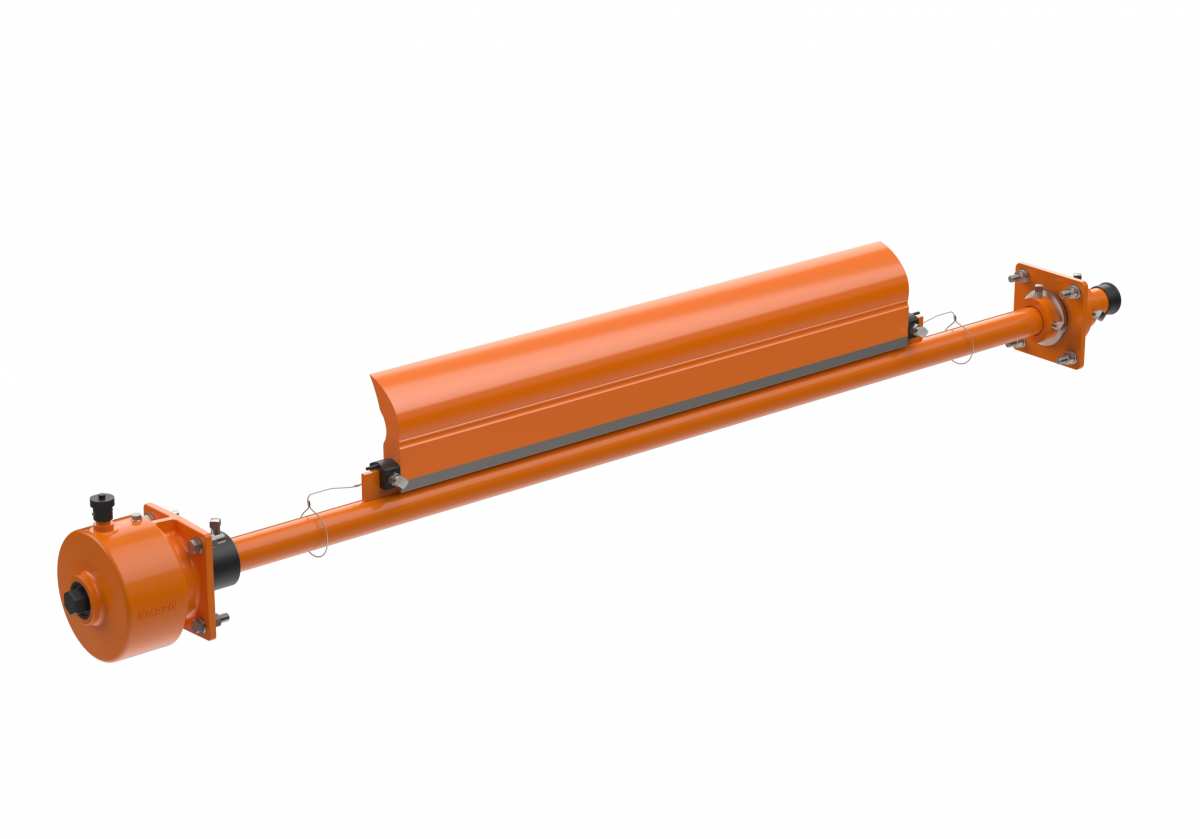

Martin® QC1+™ Cleaner PV

The Martin® QC1+™ Cleaner PV  introduces the next generation of belt cleaning technology.

The economically efficient system consisting of pre-cleaner and tensioner combines efficient cleaning with a long wear life and minimum maintenance effort

  • Manufactured with Martin’s unique Constant Angle Radial Pressure (CARP) technology, its curved blade simply cleans the belt better, minimizing carryback
    Martin’s new patented blade design maintains consistent contact with the belt and constant belt cleaning pressure as it wears, so its effective cleaning performances lasts longer
  • Same ease of installation as original Martin® QC1™ Cleaners, maintaining standard installation and service costs

Product Specifications

Belt Width 500 - 1800 mm
Belt Speed Up to 2,5 m/s
Pulley Diameter 300 - 400 mm
Temperature Between -40 °C and 150 °C
Compatible with Reversing Belts or Roll Backs Yes
